machine services

hit the ground running

If you would like your lumber order 'work-ready' upon delivery or pick-up, then requesting our machine services is the way to go.



Beginning with lumber that has been milled to be straight, square, and of consistent thickness will make a project go much smoother, and will have significant implications on how well a project turns out. Below is listed the machine services we offer.

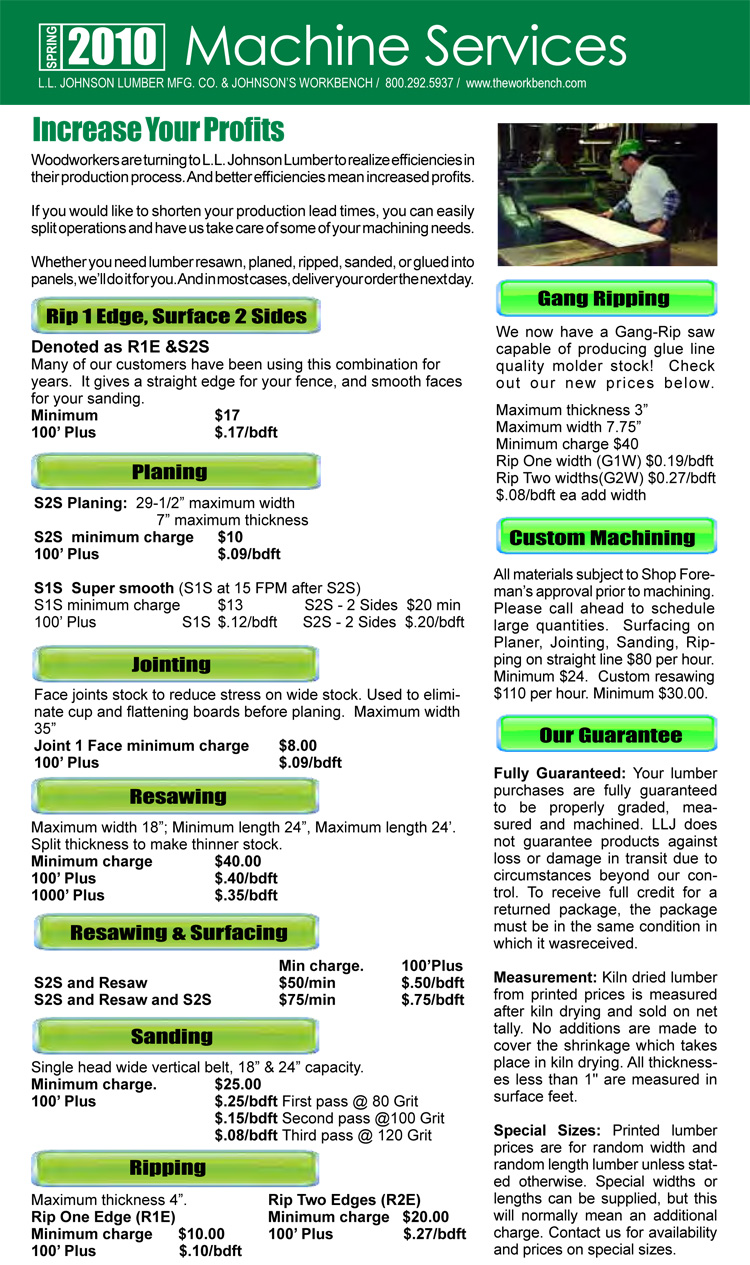

machine services pricing

PRICES SUBJECT TO CHANGE WITHOUT NOTICE. Prices updated: 04/22/19



JOINTING
Face jointing stock will reduce stress on wide stock and is used to eliminate cup and flatten boards before planing. Maximum width 35".
  MIN CHRG 100'+/BF
 1000'+/BF
JOINT 1 FACE*
                     8.00
                     0.09
.07
* maximum width - 29"
PLANING
42" CAPABILITY

MIN CHRG
100'+/BF
 1000'+/BF
S2S PLANING*
                   10.00
                     0.09
.07
* 42" maximum width, 5" maximum thickness
S1S PLANING**
                   13.00
                     0.12
.10
S2S - 2 SIDES
                   20.00
                     0.20
.18
** Super smooth (S1S at 15 FPM after S2S)
RESAWING

MIN CHRG
100'+/BF
1000'+/BF
CENTER*
                   30.00
                     0.40
                     0.35
OFFSET*
                   40.00
                     0.50
                     0.45
*Maximum width - 18" / Minimum Length - 24" Max. Length - 24'
PLANING/SANDING 42" WIDTH
 Single Planer Head and single sanding head 42" capacity
MIN CHRG
100'+/BF
1000'+/BF
1st face @ 80 Grit
                   25.00
                     0.25
                     0.18
2nd face @ 80 Grit
                   75.00
                     015
                     0.13

RIPPING

MIN CHRG
100'+/BF
1000'+/BF
R1E*
10.00/ 8.00
                     0.10
                     0.08
R2E*
 20.00/18.00
                     0.27
                     0.25
*Maximum thickness - 4"
RIP 1 EDGE, SURFACE 2 SIDES
Denoted as R1&S2S.  This popular combination gives a straight edge for your fence, and smooth faces for your sanding.

MIN CHRG
100'+/BF
 1000 +
R1E & S2S
 17.00  |  15.00
                     0.17
.15
GANG RIPPING
Gang ripping produces glue line quality moulder stock

 MIN CHRG
100'+/BF

Rip 1 Width (G1W)*
                   40.00
                     0.19
Rip 2 Widths (G2W)*
                   40.00
                     0.27
Each additional width*
                     0.08
*Max. thickness: 3"; Max. width: 7.75"
SANDING*

MIN CHRG
100'+/BF / 18"wd
100'+/BF / 42"wd
First Pass @ 80 Grit*
                   25.00
0.25
0.25
Second Pass @ 100 Grit*
                   25.00
0.15
N/A
Third Pass @ 120 Grit*
                   25.00
0.08
N/A
* Single-head, wide, vertical belt, 18" & 42" capacity
ROUGH CUT TO LENGTH
OUR LUMBER & PLYWOOD
FIRST 5 MINUTES
MIN CHRG
CHRG/HR
Lumber (4" max thickness)
FREE
                   10.00
                   40.00
Plywood
FREE
                   10.00
                   40.00
CUSTOM MACHINING
All customer lumber & plywood subject to Shop Foreman's approval prior to maching. Please call ahead to schedule large quantities.
CUSTOMER LUMBER & PLY
MIN CHRG
CHRG/HR

Jointing
                   30.00
                 100.00
Planer Surfacing
                   30.00
                 100.00
Resawing
                   40.00
                 130.00
Sanding
                   30.00
                 100.00
Straight Line Rip
                   30.00
                 100.00
Rough Cut to Length
                   10.00
                   40.00





surface or face jointing

This machine service flattens cupped or twisted boards giving you one face dead flat on which to base your cuts. We handle widths up to 35".



PLANING

Our planing service can be requested as 'hit or miss' (minimal planing to remove dirt smudges and reduce surface roughness),'finished thickness' (planed to your required finished thickness with smooth surfaces), and 'super smooth' -- a real time saver -- (plane one or both faces to a super smooth surface resulting in minimal finish sanding needed to finalize your project).



RESAWING

If you need thinner stock than 4/4 for your project, then resawing is the way to go. We will resaw to your finished thickness.



Our resawing can also give you bookmatched or sequenced lumber sets adding an esthetically pleasing consistency to your finished project.

.

RESAWING & SURFACING

Printed lumber prices are for random width and random length lumber unless stated otherwise. We are happy to supply special widths and/or lengths for an additional nominal fee. Please contact us for availability and prices on special sizes.



RIPPING

Ripping will give you one or two true edges to base all your project measurements and cuts from for more accurately squared results.



RIP 1 EDGE, SURFACE 2 SIDES

This is an often requested machining combination. Our customers find it significantly shortens their project time and reduces the amount of sanding needed.



All L.L. Johnson Lumber prices are subject to change.
Questions? Please contact us!
